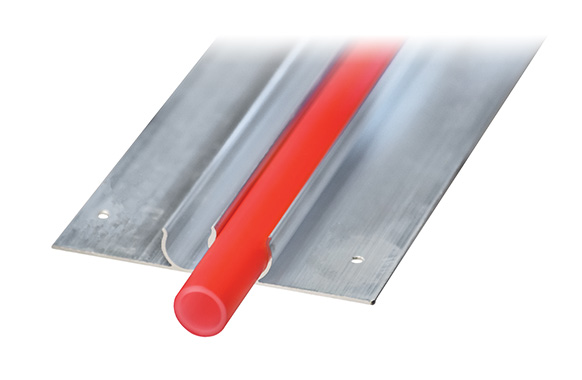

Extruded Aluminum Heat Transfer Plates - For use in radiant floor heating via joist space applications (under sub-floor) with 3/8" PEX tubing. Plates are 3-1/2" x 4' long and pre-drilled for wood screws to attach underneath sub-floor. PEX tubing is held securely in tube channel on under side of plate.

Heat Transfer Plate Specifications
800-363
Extruded Heat Transfer Plates – Patented dual track design allows for either 3/8” or 1/2” tubing.

Each panel is 48” long and has 8 pre-drilled mounting holes.

Designed to create high performance hydronic radiant heat systems for new and retro-fit projects.

The rigid extrusion and tight tube grip provide excellent heat transfer without expansion noise.

Accepts PEX, PEX-AL-PEX, PE-RT and copper tubing without the need for additional fasteners or adhesives.
